Wagner Tuning Kia (Pro)Ceéd GT (CD) Competition Intercooler Kit - 200001153

Wagner Tuning Kia (Pro)Ceéd GT (CD) Competition Intercooler Kit - 200001153

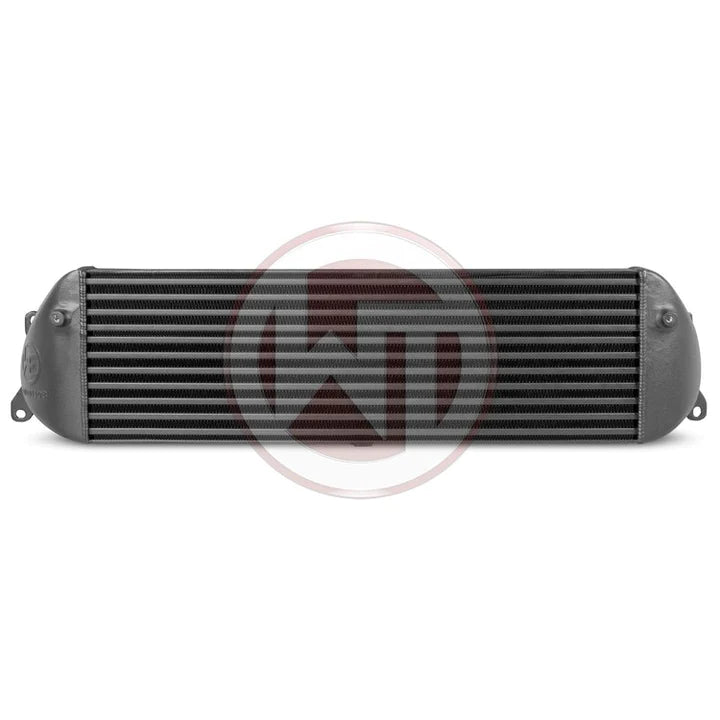

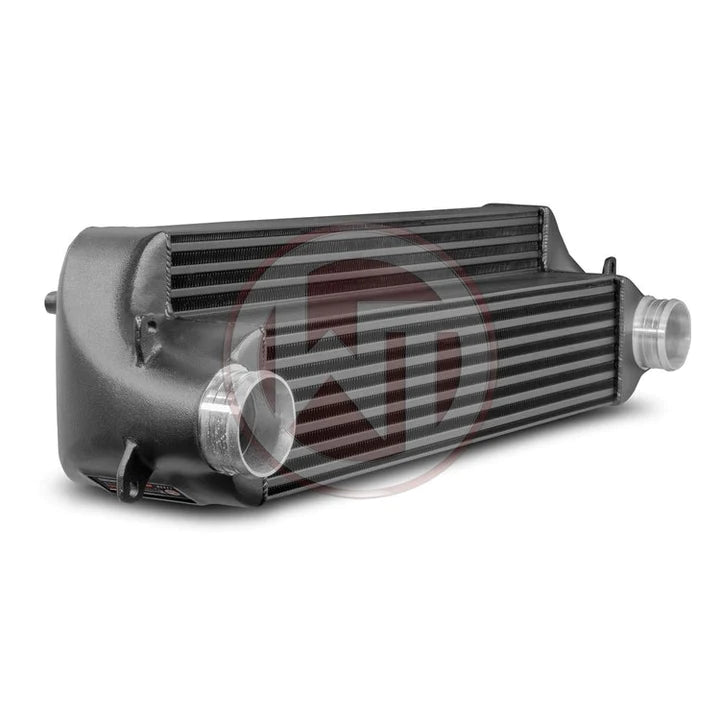

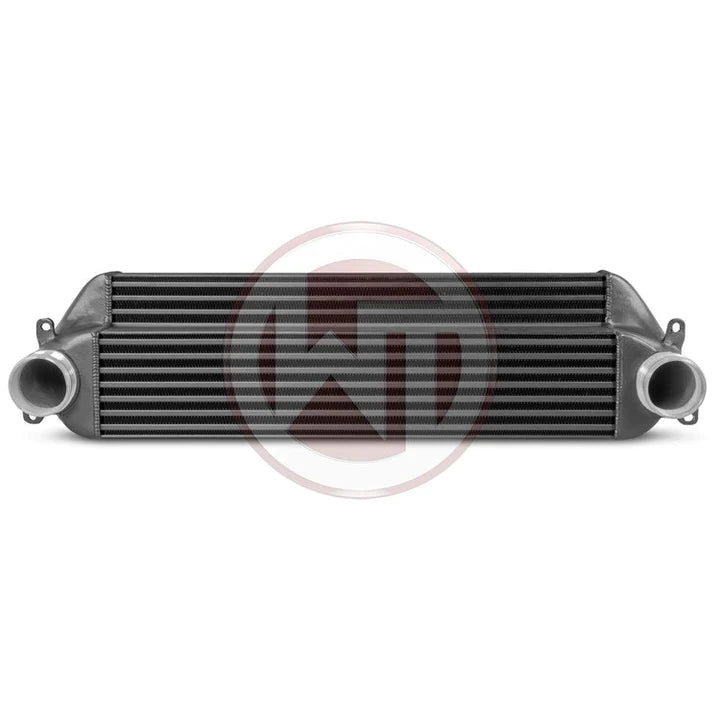

Competition INTERCOOLER KIT for Kia (Pro)Ceed GT 1.6TGDI

Kia Ceed (CD) GT 1.6TGDI 150KW/204PS 2018+
KIa ProCeed (CD) GT 1.6TGDI 150KW/204PS 2018+

The WAGNERTUNING high-performance intercooler has got a new competition core (tube fin) with the dimensions 580 mm x 120 mm x 150 mm + 580 mm x 62 mm x 70 mm (stepped core: 12.96 liters) / 22.83Inch x 4.72Inch x 5.9Inch + 22.83Inch x 2.44Inch x 2.76Inch (stepped core: 790.87Inch³) , which was developed especially for the requirements of the Kia (Pro)Ceed GT. This high-performance core offers an 60 % larger frontal surface and 118 % more core volume compared to the stock intercooler.

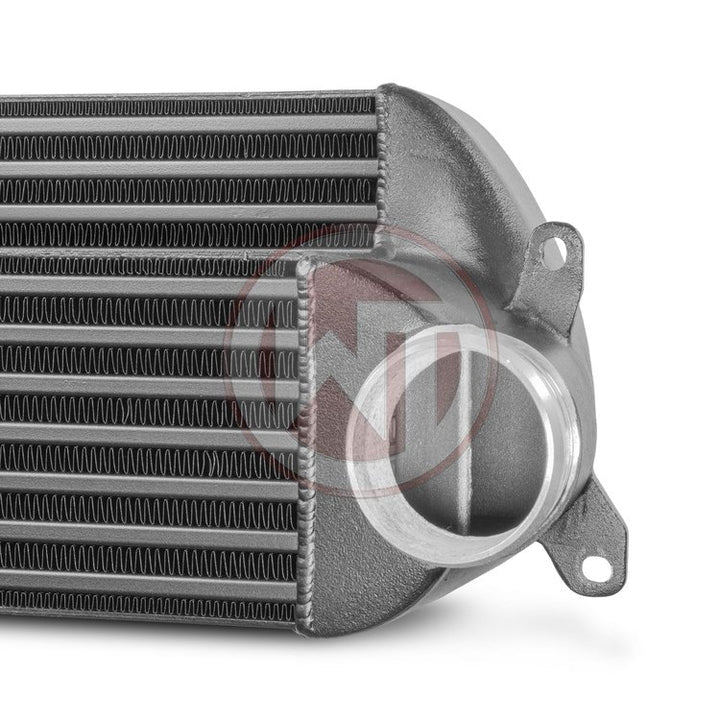

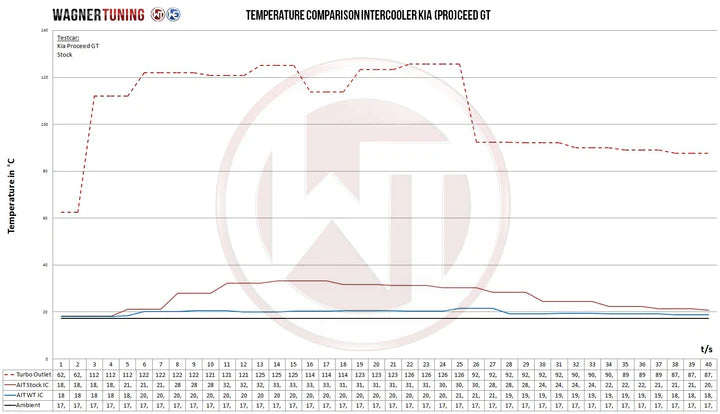

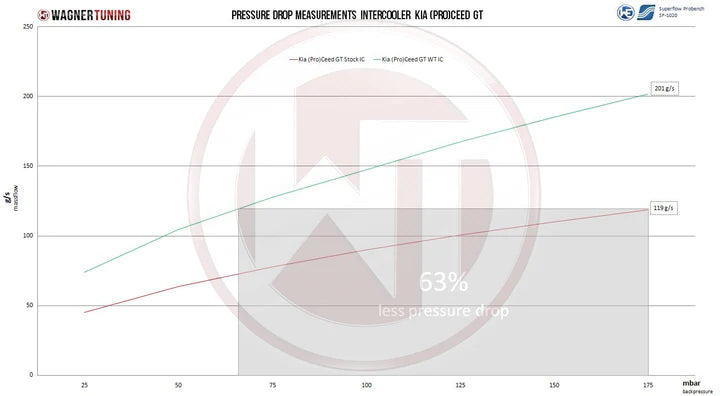

The aluminium cast endtanks were designed in CAD and optimised in CFD simulations (for an ideal internal airflow). The result is a excellent cooling property with a minimal back pressure. The newly developed performance core provides the adjoining components (for example the watercooler) enough air flow by using a specially prepared air baffle. That`s why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!

An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.


Inlet diameter: Ø65 mm ; Outlet diameter Ø65 mm

Details stock intercooler:
V = 5.94 L / 362.48Inch³
A = 660 cm² / 102.3Inch²

Details WAGNERTUNING intercooler:
V = 12.96 L / 790.87Inch³ (+118%)
A = 1055 cm² / 163.53Inch² (+60%)

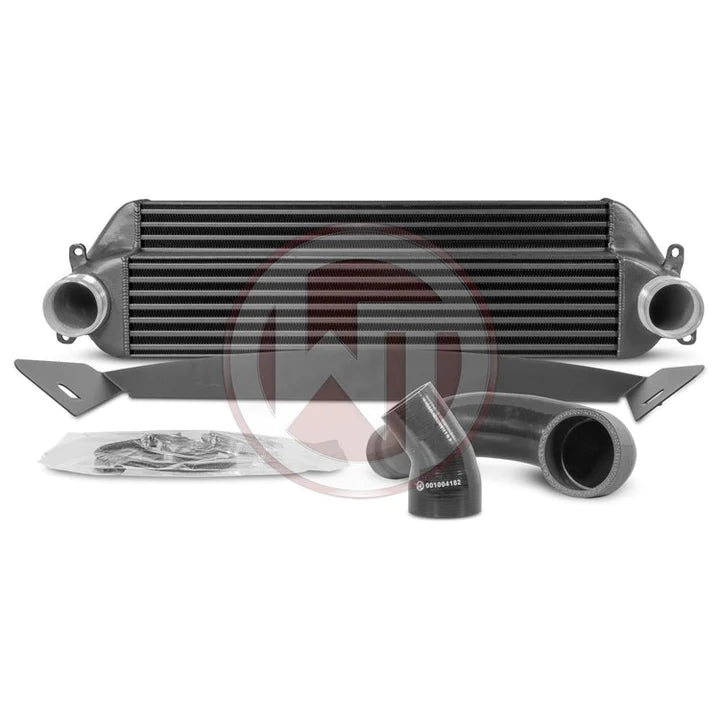

This kit comes with:
1 intercooler
2 silicone hoses (black)
1 air baffle
1 mounting material
1 installation instruction
