Competition INTERCOOLER KIT for Audi RS6 C6 4F 426KW/580PS (2008-2010)

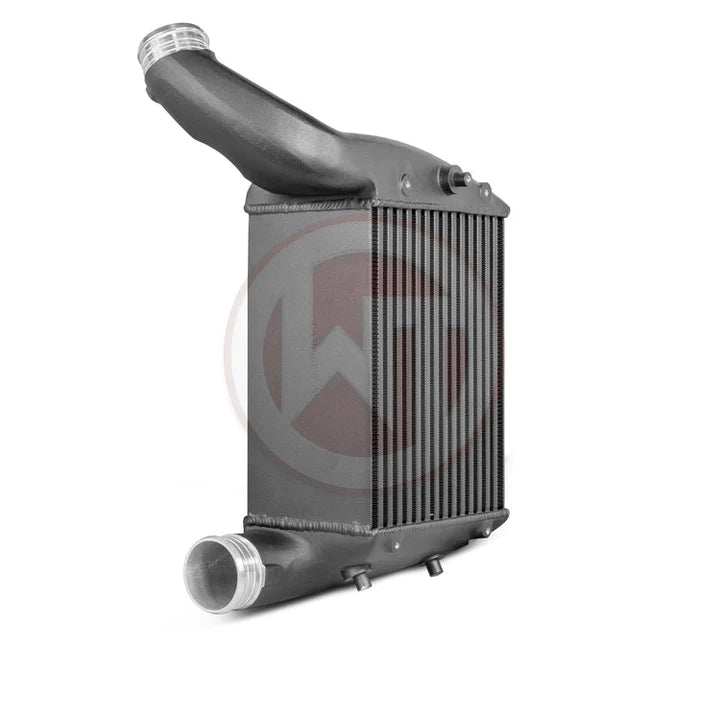

The WAGNERTUNING high-performance intercooler has got a new competition core (tube fin), which was developed especially for the high requirements of the Audi RS6 C6. Our newly developed HD-Fin type is used to provide the best possible performance. The outer dimensions for each intercooler core are 283 mm x 225 mm x 90 mm + 283 mm x 193 mm x 55 mm (stepped core: 8.73 liters) / 11.14Inch x 8.86Inch x 3.54Inch + 11.14Inch x 7.6Inch x 2.16Inch (stepped core: 532.74Inch³) This high-performance core offers a 79% larger core volume compared to the stock intercooler core.

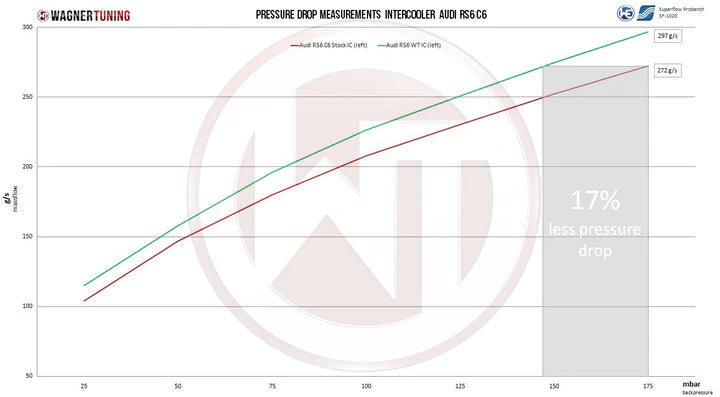

The aluminium cast endtanks were designed in CAD and optimised in CFD simulations (for an ideal internal airflow). The result is a excellent cooling property with a minimal back pressure. An optimal cooling effect of the charged air with a significant increase in performance! That`s why this kit is perfect for racing use.

The stock mounted plastic air guides can still be used. The kit also includes new water cooler, which replace the stock mounted water cooler behind the intercooler. The new watercooler is place in the front behind the new cross member, which is also included to the kit. The installation is done by replacing the original intercooler and is easy to perform (plug and play).

An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. All our products are subject to a continuous quality monitoring.

Inlet diameter: Ø64 mm (same as stock) ; Outlet diameter Ø60 mm (same as stock)

Details stock intercooler:
V = 4.88 L / 297,8Inch³
A = 637 cm² / 98.7Inch²

Details WAGNERTUNING intercooler:
V = 8.73 L / 532.74Inch³ (+79%)
A = 637 cm² / 98.7Inch²

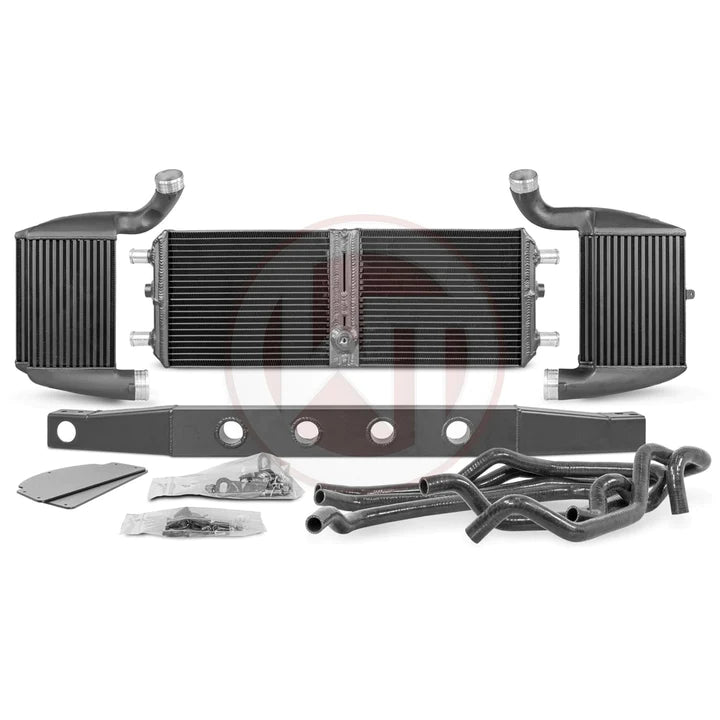

This kit comes with:

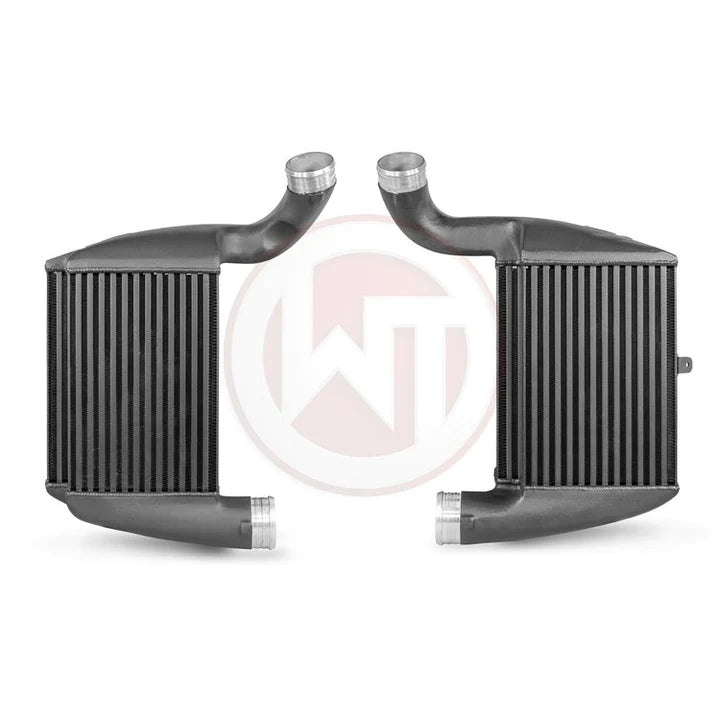

2 intercooler powder coated black (left/right)

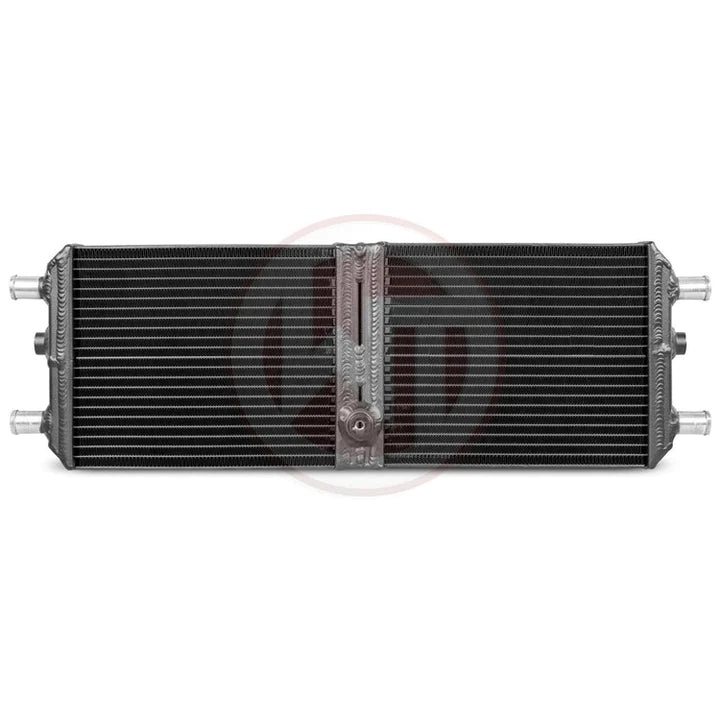

1 watercooler powder coated black

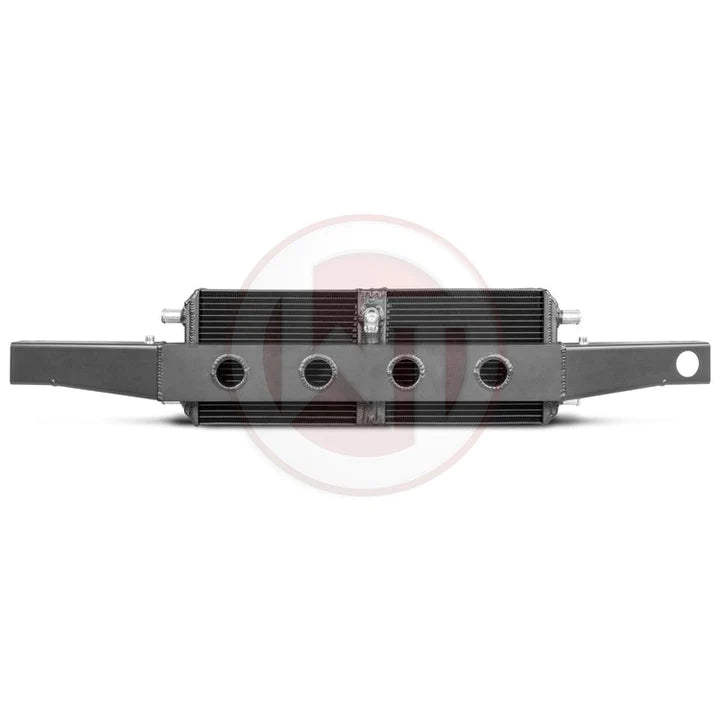

1 cross member powder coated black
4 water hoses black
1 mounting material
1 installation instruction
