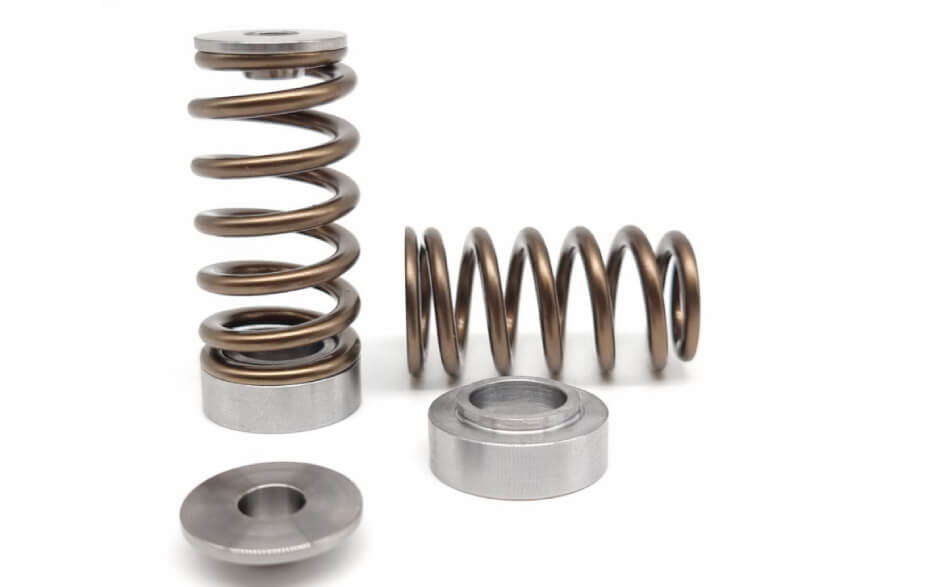

Kelford Cams Toyota G16E-GTS | Valve Spring Set

Toyota G16E-GTS high performance beehive valve springs with titanium retainers for GR Corolla /GR Yaris. Remove OEM base and fit supplied base.


• Intake: 100lb seat pressure at 35.0mm installed height. 198lb at 12.0mm valve lift.
• Exhaust: 87lb seat pressure at 36.7mm installed height. 178lb at 11.5mm valve lift.


Spring coil bind height (solid height) 22.0mm.
