Racingline Underbody Tunnel Brace For MQB [VWR810004 / VWR810005]

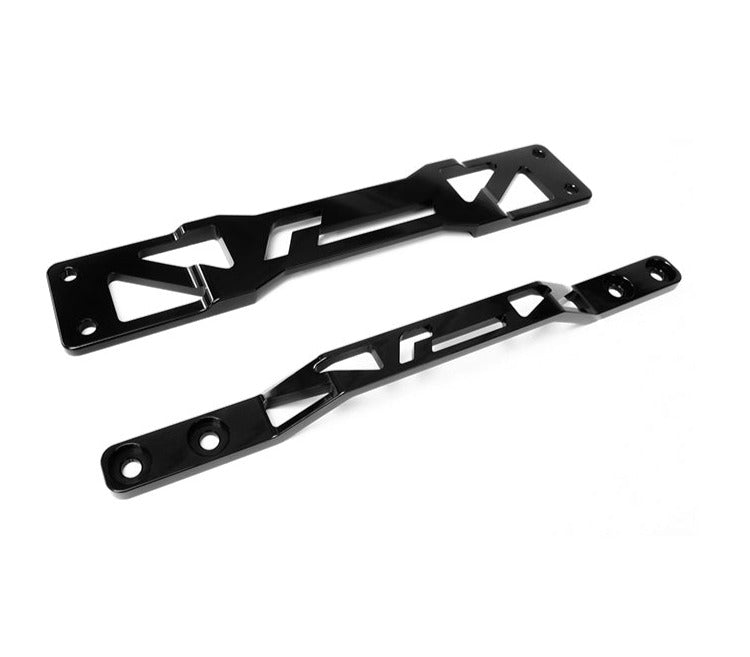

These two intricately designed MQB Billet Underbody Tunnel Braces mount under the body to help fight body flex. This improves rigidity to help refine the handling, whilst also providing valuable extra clearance for larger diameter exhaust system.

WHAT DO THEY DO?

MQB cars rely on thin stamped-steel OE tunnel braces underneath in an attempt to reinforce the body’s weaker points and limit chassis flex under demanding loads.

Our new Billet Underbody Braces replace these weak braces with intricately machined aluminium replacements, greatly improving stiffness, giving much better exhaust clearance and even look great!

CNC Machined from a solid billet of 6061-T6 Aluminium, each brace has been engineered to remove unnecessary material whilst still increasing rigidity.

With any 3″ diameter exhaust system, the OE brace gives insufficient clearance. So rather than removing the tunnel brace, our new Rear Tunnel Brace at last gives you the option to replace it, giving you the clearance you need plus maintaining crucial body stiffness.

Despite adding stiffness, this improved dynamic performance comes without sacrificing any ride quality or introducing any additional noise, vibration, or harshness into the cabin.

The brace designs mean that installation is simple, using existing body mounting points with no drilling or trim removal required, ensuring fitment is completely reversible.

We offer two braces – a Centre and a Rear Tunnel Brace. Owners of FWD cars can fit both, AWD cars can only fit the Rear Tunnel Brace.

REAR TUNNEL BRACE WITH EXTRA EXHAUST CLEARANCE FOR ALL MQB MODELS

For large diameter aftermarket exhausts, there simply isn’t clearance space above the factory tunnel brace. Many owners have no choice but to remove the brace. But the brace is there for a reason. With the extra clearance our Rear Tunnel Brace gives, you can now maintain strength and fit your bigger exhaust.

CENTRE TUNNEL BRACE WITH EXTRA EXHAUST CLEARANCE FOR FRONT WHEEL DRIVE MQB MODELS ONLY

CONFIRMED APPLICATIONS
​
​CENTRE TUNNEL BRACE (FWD)
ONLY FOR FWD MQB MODELS
​VWR810004
​
REAR TUNNEL BRACE (FWD & AWD)
FOR ALL MQB MODELS
VWR810005

Drive a Front-Wheel Drive MQB car? Good news – you can fit both of the Underbody Tunnel Braces on your car (or either one).

If your car is All-Wheel Drive MQB, then only the Rear Tunnel Brace will fit on your car.

VW Golf 8 GTI 2020+

VW Golf 8 GTI Clubsport 2020+

VW Golf 8 R 2020+

VW Golf 8 2020+

VW Golf 7 & 7.5 GTI & Clubsport 2013-2020

VW Golf 7 & 7.5 R 2013-2020

VW Golf 7 & 7.5 2013-2020

VW Passat 2.0 TSI B8 2015+

VW Arteon 2.0 TSI 2017+

VW T-Roc R 2.0 TSI 2019+

VW Tiguan II 2.0 TSI 2016+

Audi S3 8Y 2020+

Audi A3 2.0 TSI 8Y 2020+

Audi A3 8Y 2020+

Audi S3 8V 2013-2020

Audi A3 8V 2013-2020

Audi RS3 2.5 TSI 8V evo 2017-2020

Audi TT 3 2.0 TSI 8S 2014+

Audi TTS 3 2.0 TSI 8S 2015+

Audi TTRS 3 2.5 TFSI 8S 2017+

Audi SQ2 2018+

Audi RSQ3 F3 2019+

Skoda Octavia IV vRS 2.0 TSI 245ps NX 2020+

Skoda Octavia IV NX 2020+

Skoda Octavia III vRS 2.0 TSI 5E 2014-2020

Skoda Superb III 1.8 / 2.0 TSI 3V 2015-2020
